Does anyone have a schematic for the 2005 F250 ABS? I have lost my communication with the ABS module.

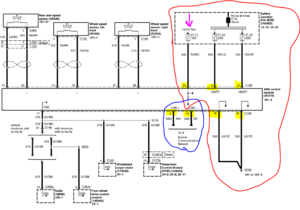

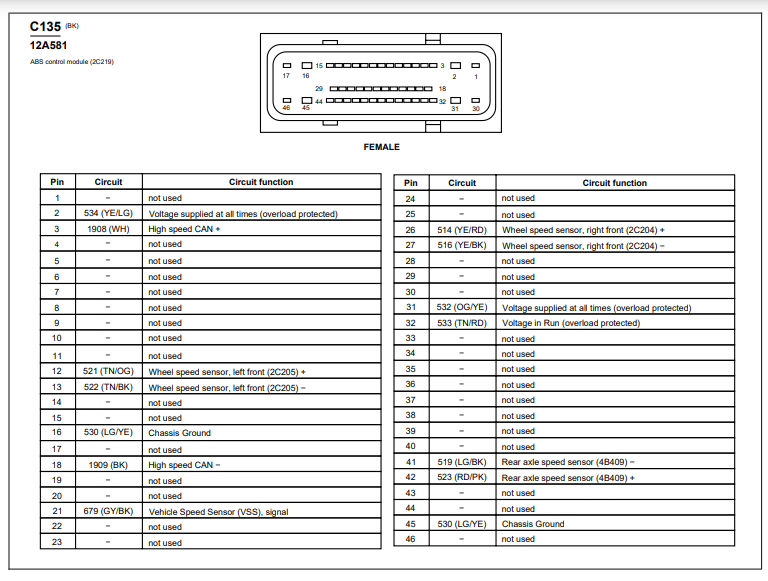

OK here is the ABS wiring diagram along with the connector view. You need to check the wires that I circled in red, make sure to read what the purple arrow is pointing to or you will fail at this step. On the off chance that you do not find anything wrong with the red circled wires let us know and I can direct you how to test the wires I circled in blue.



I appreciate the info Scott.Butler4. I lost power on terminal 2. Had to repair a wire under the fuse box. Ford dealer told me it was a bad ABS Module. Luckily the could not get one, so I brought it home to diagnose myself.



How do you test the blue wires i am having a simular issue but all other wires seem to check out
