Default Courtesy lights stay on

My courtesy door lights in my 94 F150 stay on even whenever the truck is off and the door is shut, the only solution I’ve found is to pull the fuse in the interior fuse box that powers it, I’ve cleaned the door switches with no success

Old Jan 27, 2025 | 10:33 PM
  #2
heiko's Avatar
Senior Member
Joined: Feb 2024
Posts: 1,191
From: California
Default

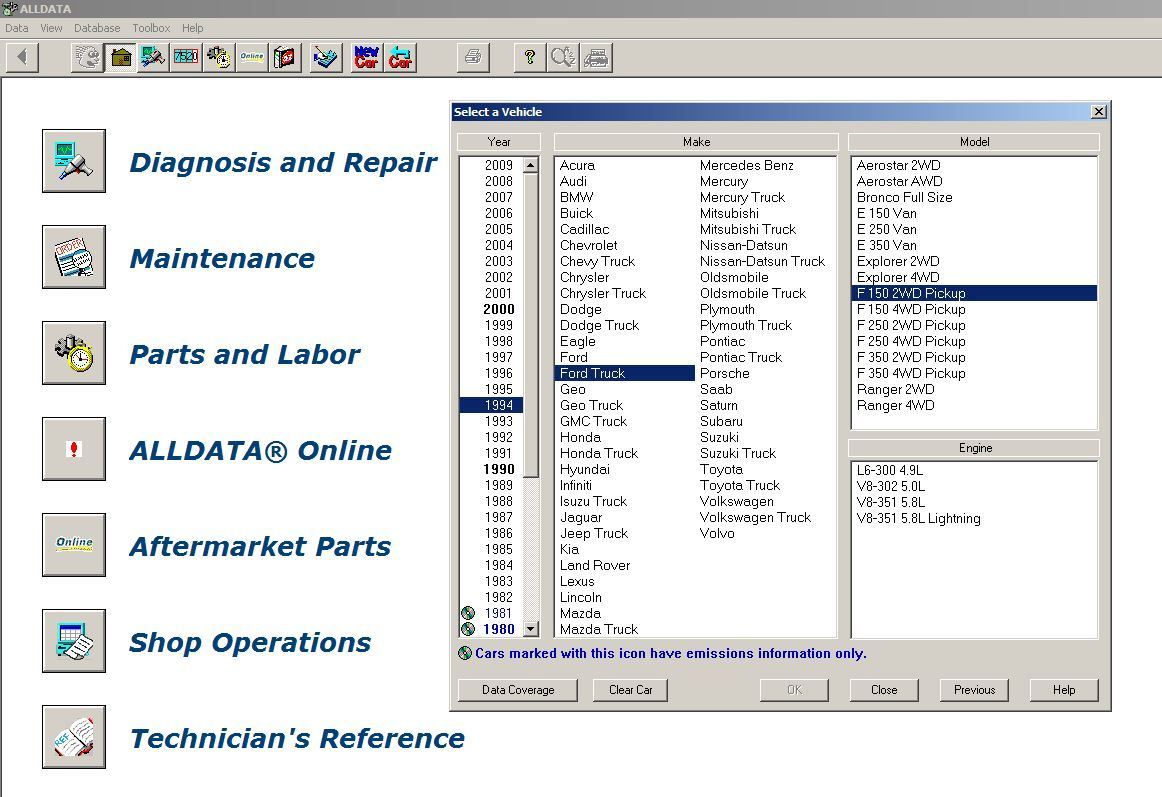

OK button not clickable above because engine size is not selected. Check my signature below.
Do you have the door switch on passenger door as well? If you do have you tested that?


Last edited by heiko; Jan 27, 2025 at 10:36 PM.
Old Jan 28, 2025 | 07:23 AM
  #3
rtsharp06's Avatar
Thread Starter
|
Junior Member
Joined: Jan 2025
Posts: 2
Default

It’s a 5.0 and a 4WD, the passenger side was also cleaned up and tested to no avail

Old Jan 28, 2025 | 11:59 AM
  #4
heiko's Avatar
Senior Member
Joined: Feb 2024
Posts: 1,191
From: California
Default

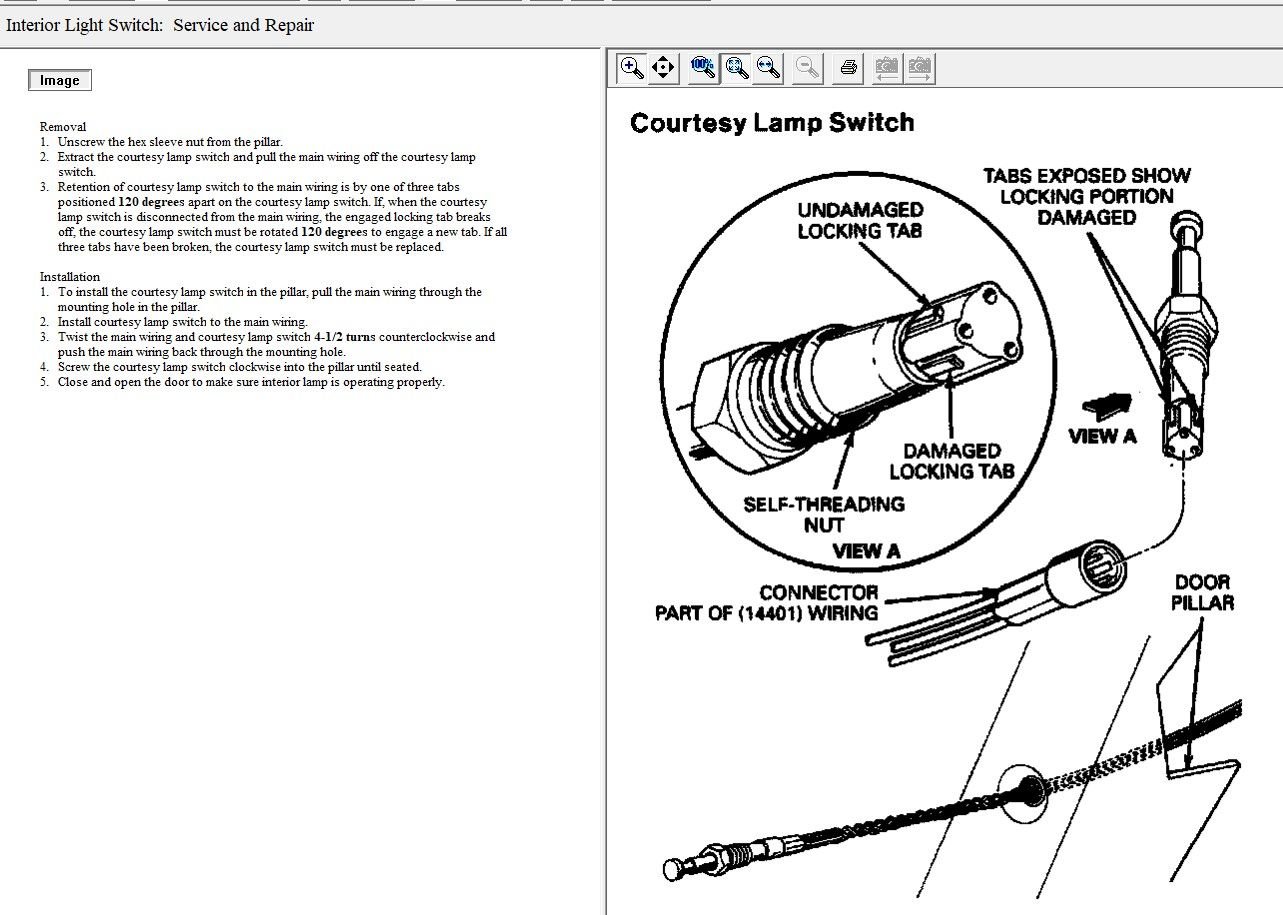

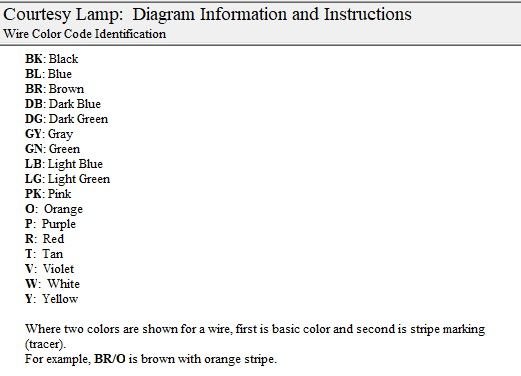

When the switch is connected to the connector you will see 3 wires: LB/Y = power feed, BK/LB = to courtesy lamp, R/PK = buzzer attached to the connector.
Before you remove the switch remember the switch orientation so you can identify which is which.
Let say terminal A is the power feed, B is courtesy lamp and C is buzzer.

B and C will have continuity at all time whether or not you press on the switch button by hand. This switch is a normally-closed switch, that means when you do nothing (don't press), a good switch will have continuity across all 3 terminals. When you press on it, a good switch will cut off continuity between A and B and between A and C. A bad switch of course is the opposite, A and B, A and C, have continuity whether or not you press on the button.

Attached Files
File Type: pdf
With_RKE-Electrical_Diagrams.pdf (222.3 KB, 291 views)

Last edited by heiko; Jan 28, 2025 at 01:11 PM.
Old Jan 28, 2025 | 02:33 PM
  #5
hanky's Avatar
Senior Member
Joined: Jun 2010
Posts: 16,529
Default

Pretty sure the courtesy can be turned on with the headlamp sw..

If you are sure the sw is in the interior lights off position, and you couldn't find any problem with door sw, you can usually reach under the dash at the headlamp sw and push the button on the headlamp sw and remove the **** , after which you can unscrew the bezel that holds the headlamp sw to the dash and pull the sw down where you can see it. then, unplug the plug from the headlamp sw and see if the courtesy lamps go out, If they do ,you know the sw is defective and needs to be replaced.
