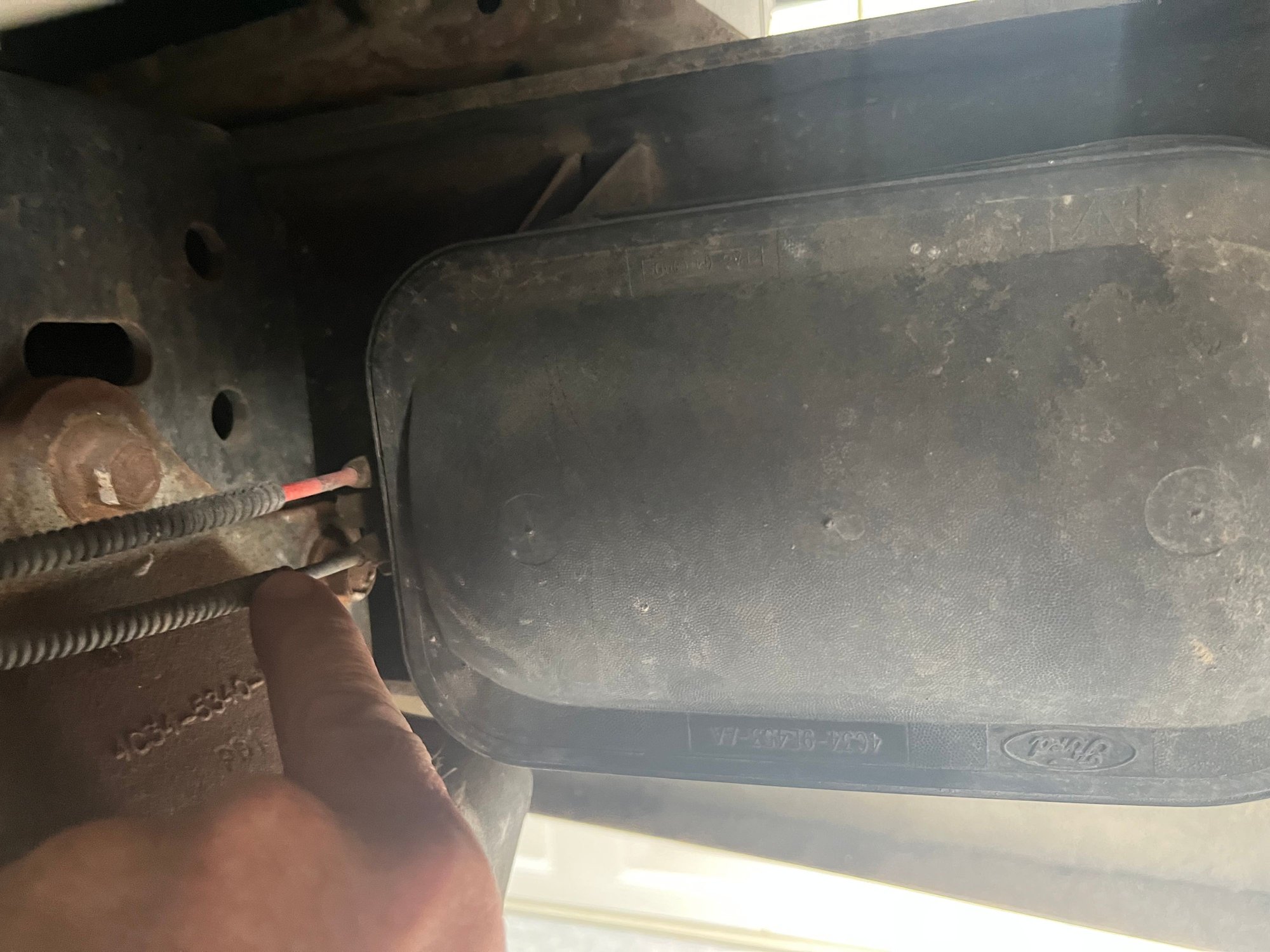

Traveling in my 2006 Bounder Triton V-10 motorhome this past week. At a truck stop we heard a plastic ticking in the engine bay. Found a black wire loom with a plastic vacuum tube in it severed hanging in the radiator fan. Traced that to a reservoir (4c34-9e453-aa) with another similar red vacuum tube going to the top of the engine on each side. I have crawled under, took out the engine hatch and looked all around and can not find the other severed end........not sure if some of the missing end got pulled out of its end spot not allowing me to chase it or not. Any help pointing me in the right direction on where the other end goes...........

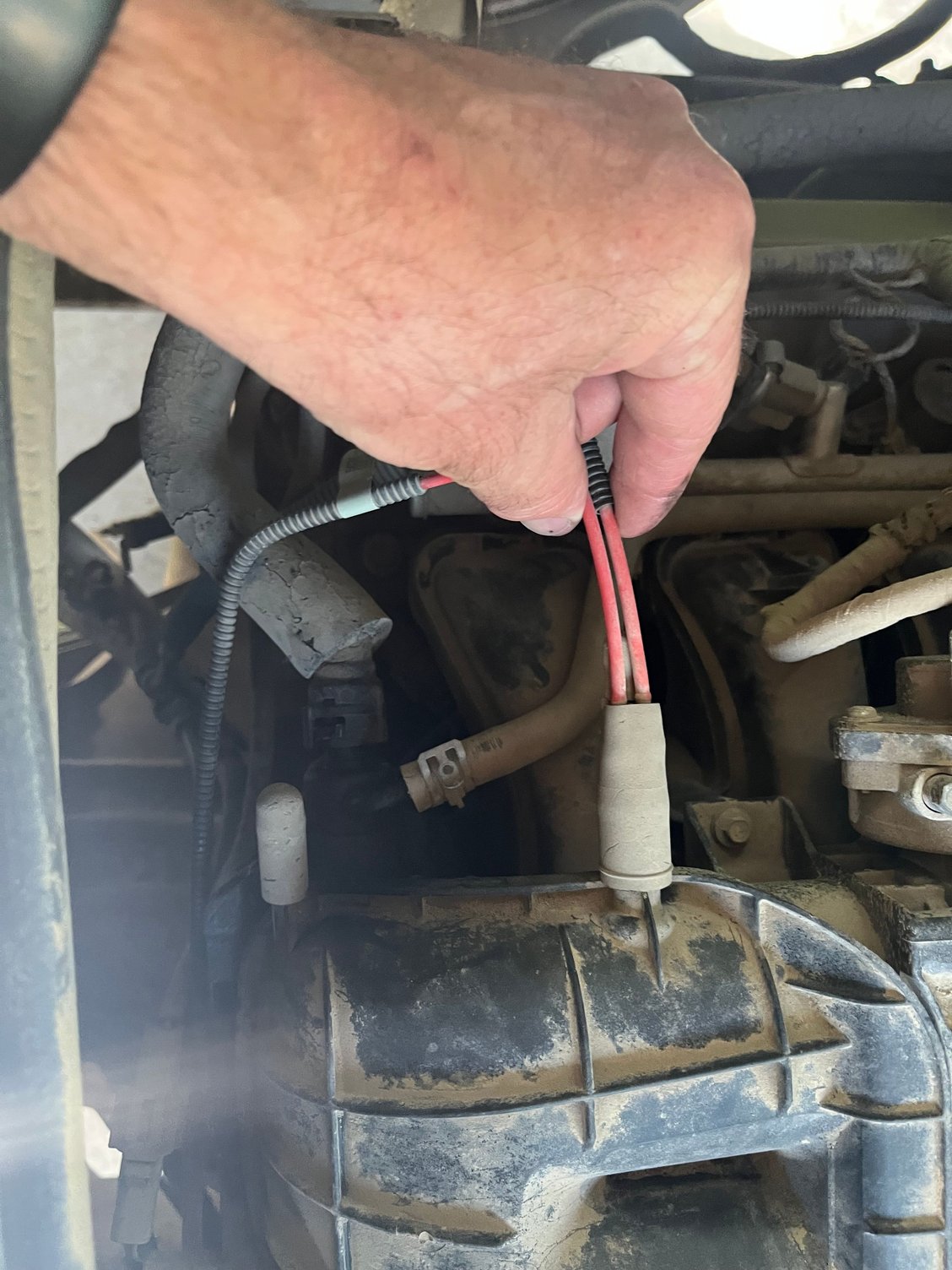

Red tube to same reservoir

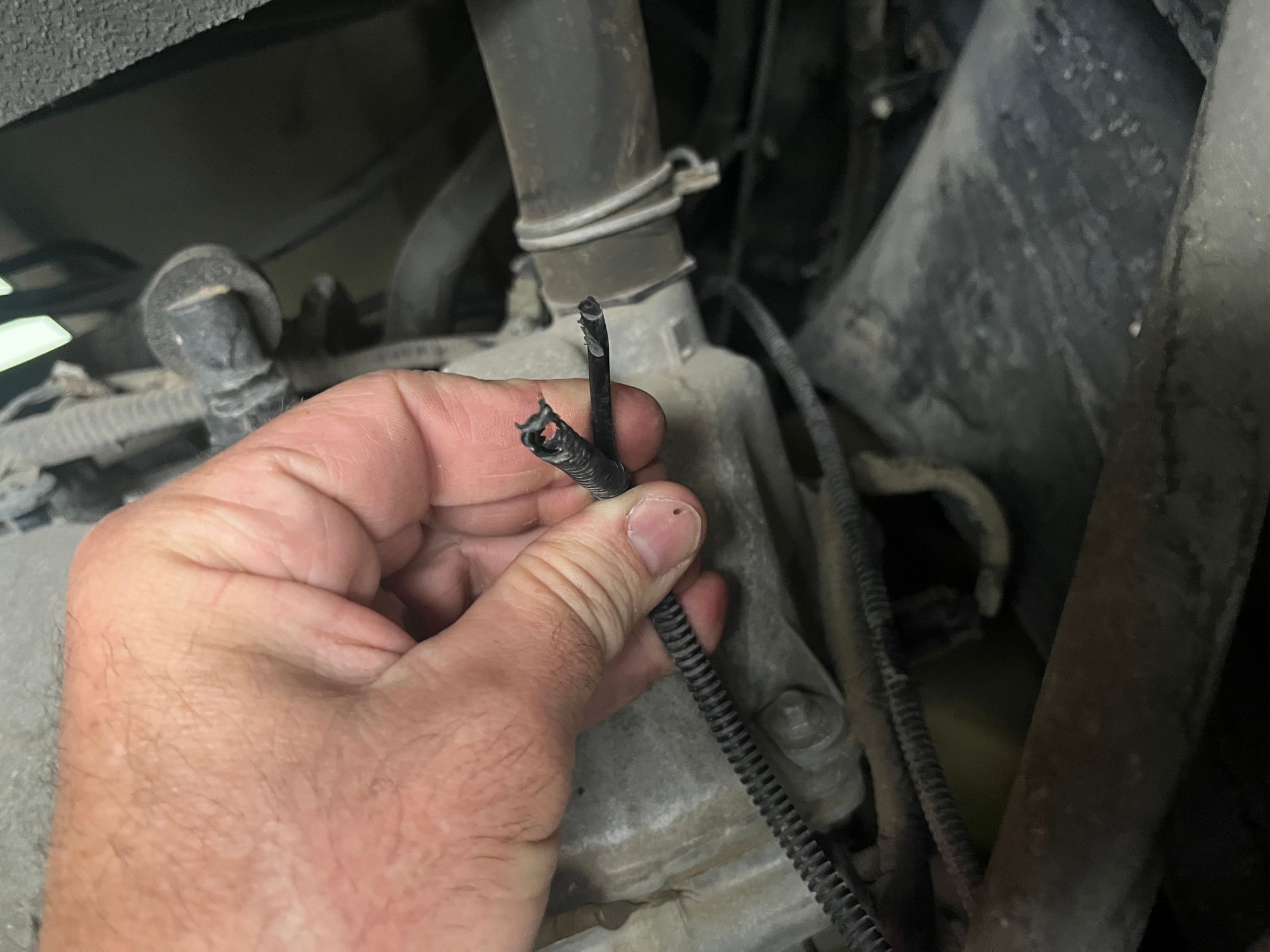

Severed black tube



Don't have a clue what Bounder Triton is.
Check my signature below.



It is a 2006 Fleetwood Bounder motorhome with a Ford V-10 Triton engine in it



A 10 is a V10, what you need is a vacuum diagram showing where which vacuum lines go where. A vacuum diagram makes this a lot easier.

In order to supply the CORRECT diagram, please supply the info requested,

All 2006's may not be the same even if they all have V10s Different applications can have different diagrams and different engine certifications.

I know it sounds clear as mud !



Hahaha sounds even clearer on the 4th after a few beverages ;-)



Thanks Hanky



What is Triton engine, you are still NOT being specific.
Read my signature below I put:
YEAR: you said 2006
MODEL: Is it a stripped chassis F-Series, which EXACT one, F350? F450? F550?
ENGINE_SIZE: you said V10
2WD/4WD: Based on your question regarding vacuum hose this is absolutely important. Vacuum hose configuration on a 2WD (without using IWE) and 4WD (using IWE and vacuum is applied when 2WD mode is selected) are totally different.

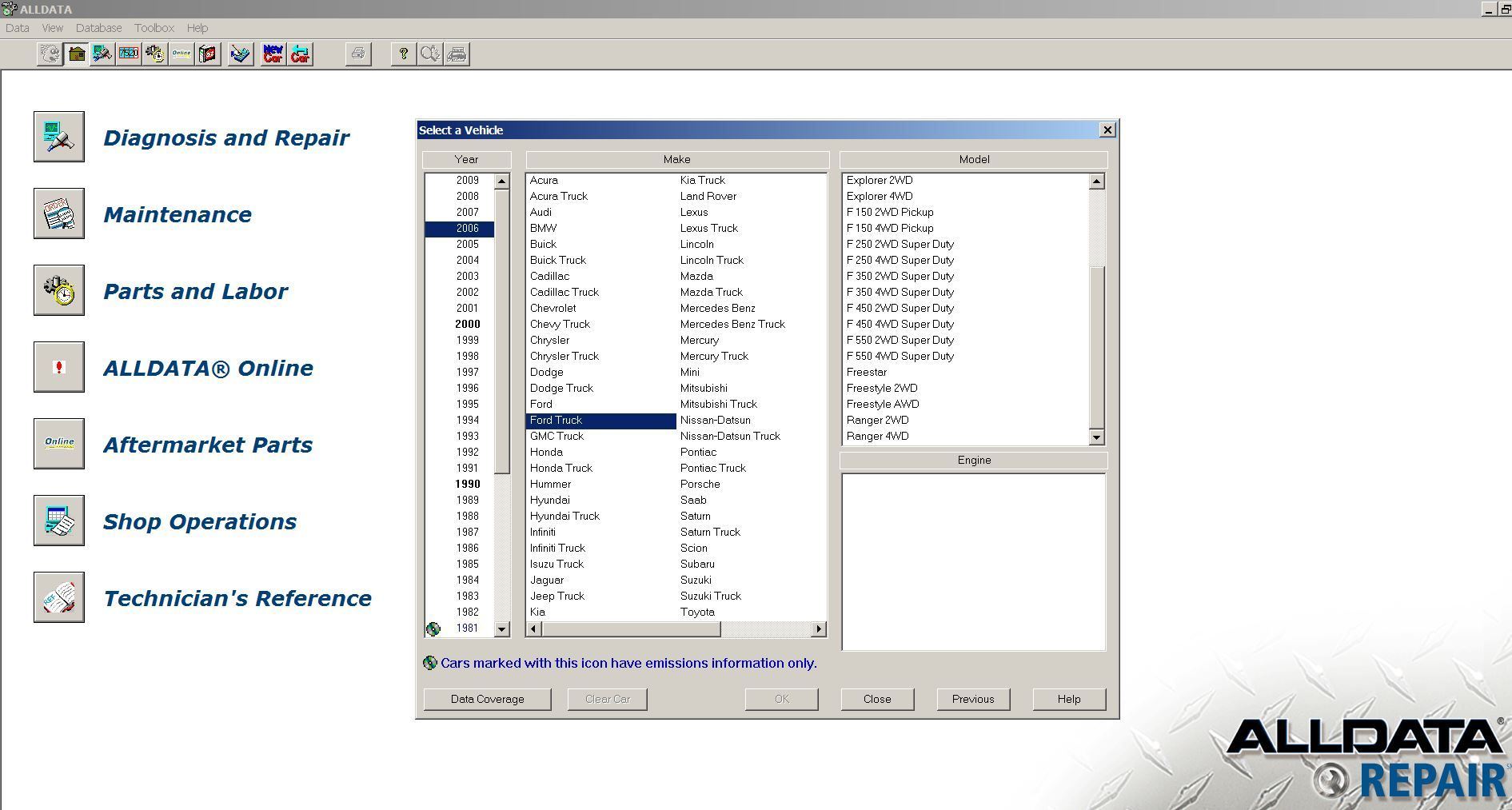

Just so you know, when ANY of the info asked on my signature is missing, my alldata software simply can't pull any data. Just like you buy a part at rockauto or ebay, you will be asked the same thing.


Look above, OK button is not even clickable.



Haven't been able to find out what truck (F350-450 etc) but here is what I found from Ford

https://fordauthority.com/fmc/ford-m...triton-engine/



It's only a few clicks for me to pull the diagrams for you but I don't want to take the guess which F-series and submit the wrong diagrams as that would waste your time and mine as well as everyone reading this thread.



I understand. Everything I have read appears to be the F-350 package
