I'm trying to trace the rat's nest of EGR/Emission hoses around the engine bay.

I have the 1988 Ford Car Shop Manuals "C" (Body/Chassis/Electrical) and "E" (Powetrain), but neither cover this information.

Is there another Ford Shop Manual for this subject? Hopefully.... with visual diagrams.

Thanks.

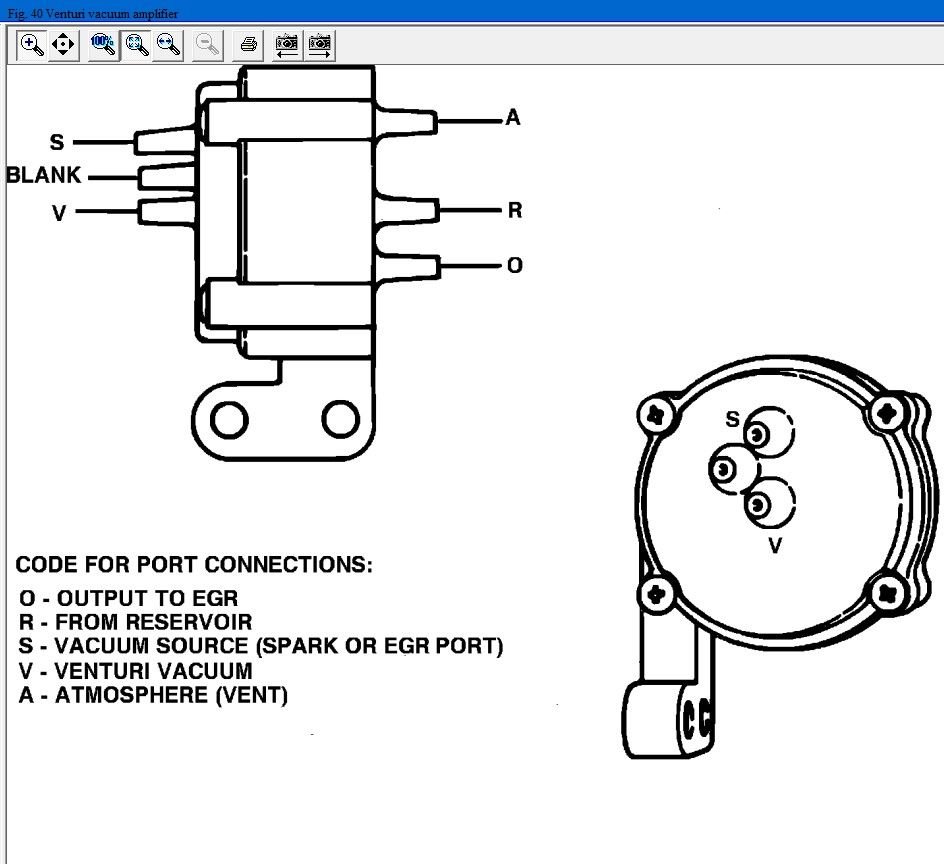

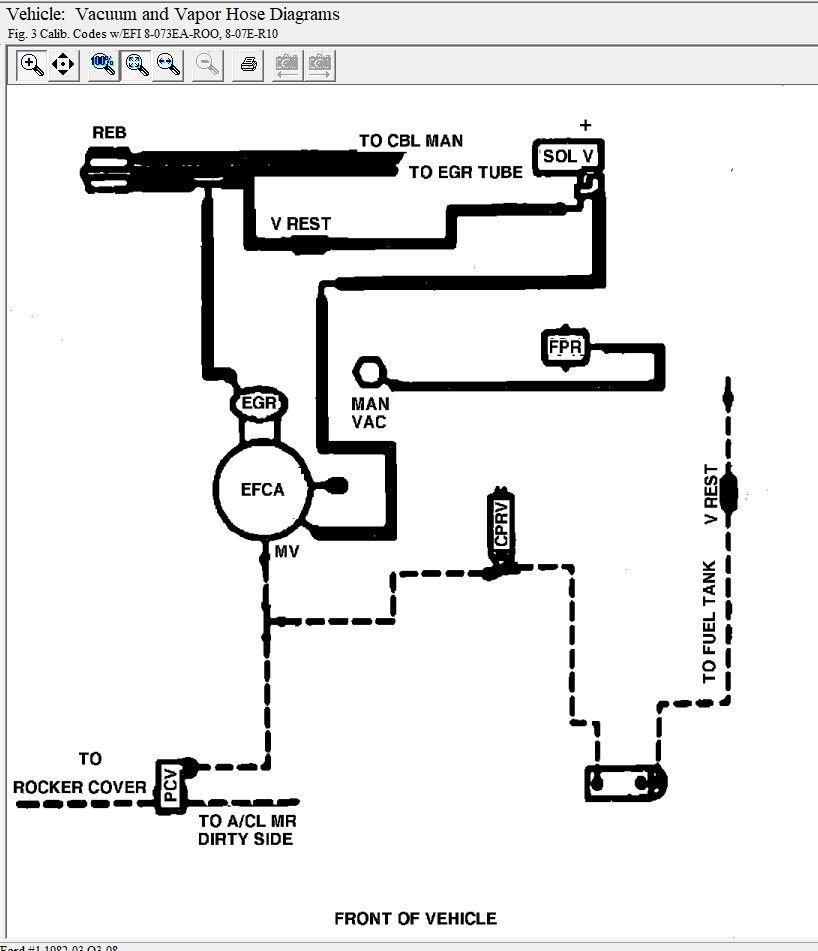

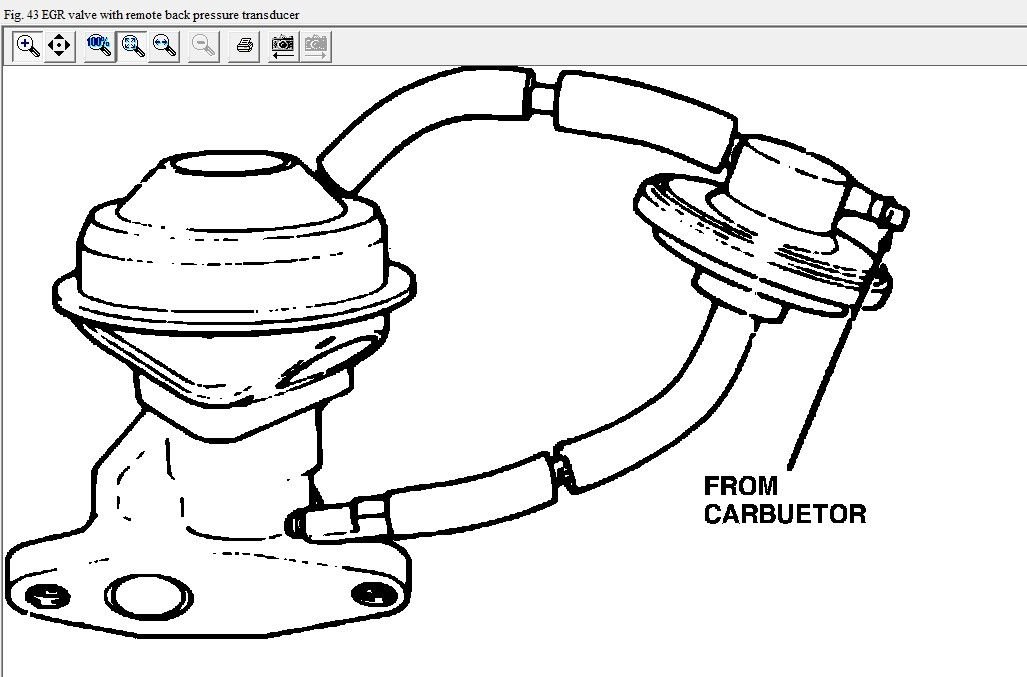

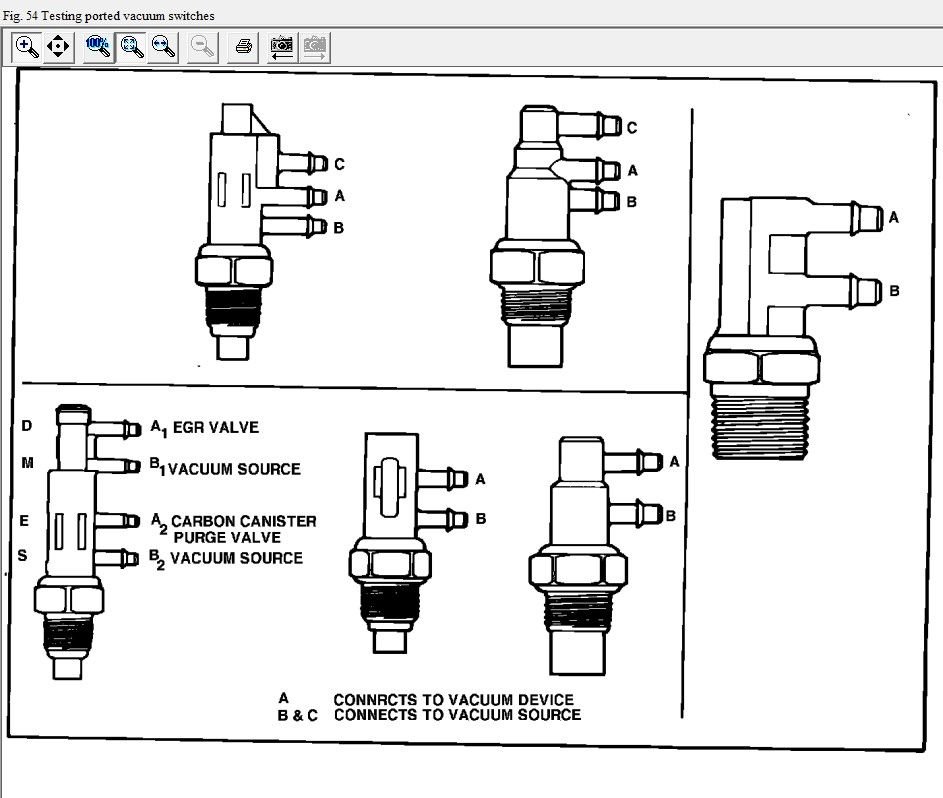

Will dig through my library of info and if I can come up with a diagram, will try to offer some assistance.

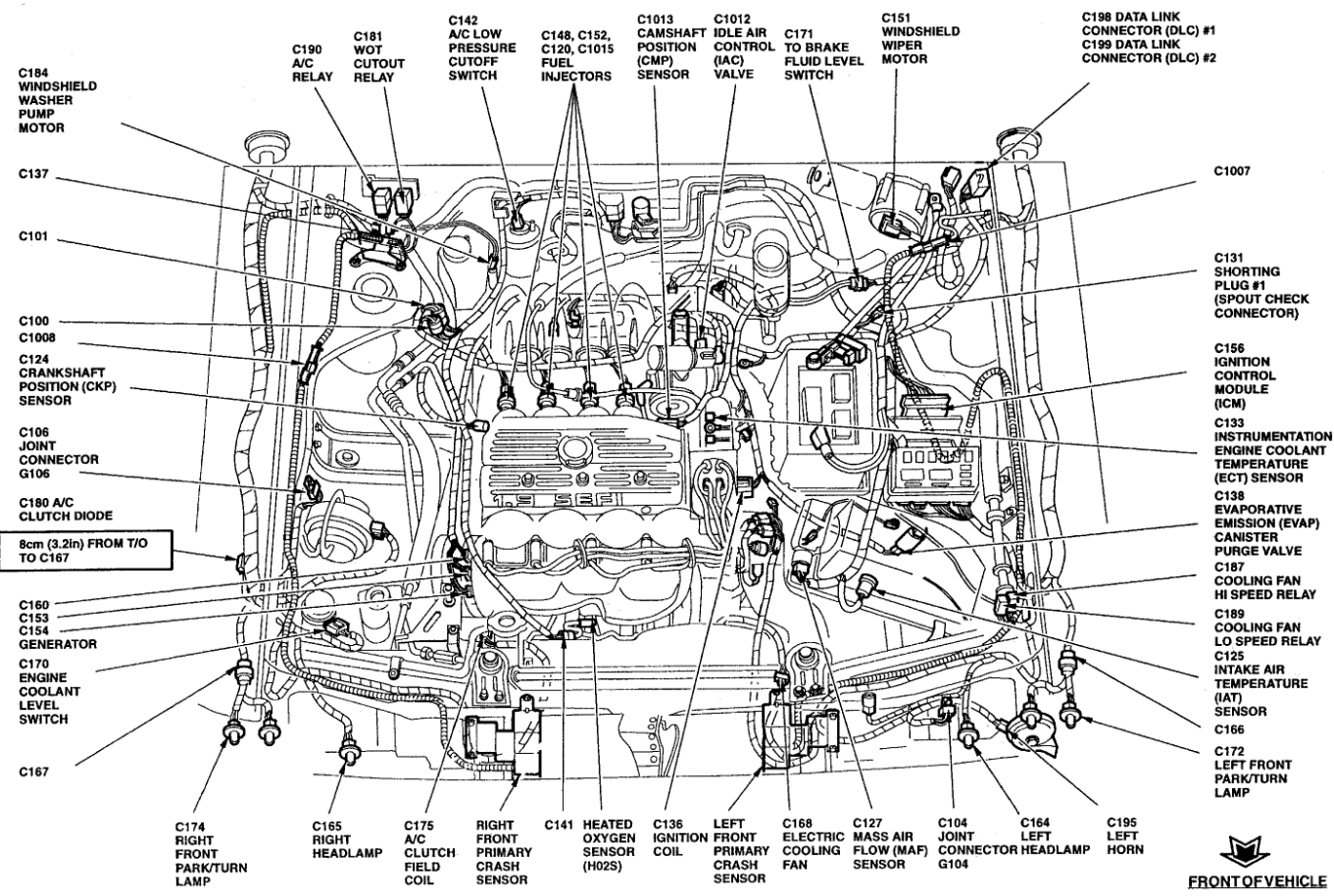

I'm hoping to find something along the lines of '95 Escort ref drawing (only showing "plumbing")



You have a 88 and a 89?The other thread you said 88 on this you mentioned 89.

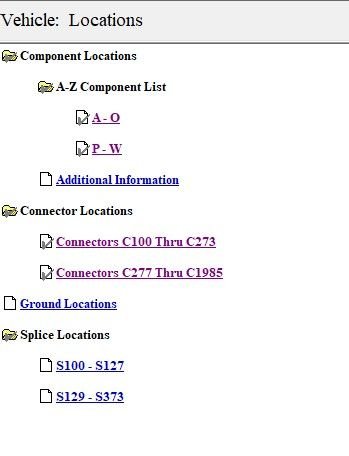

I don't know the exact differences I can only pull up what's told from my alldata software (any car make/model up to 2007, not just Ford).



88-89, myeah... .potato, potahto...

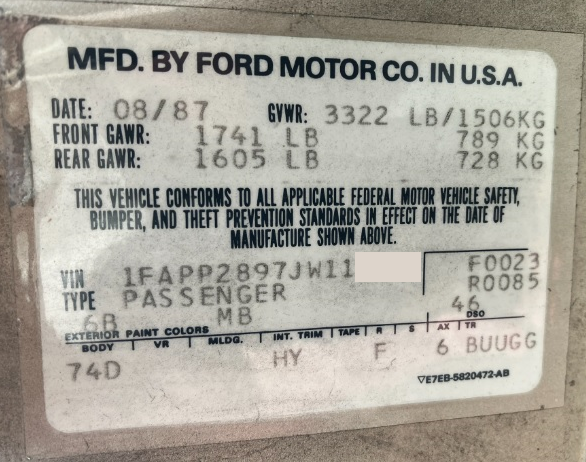

Registered, new, 1988.

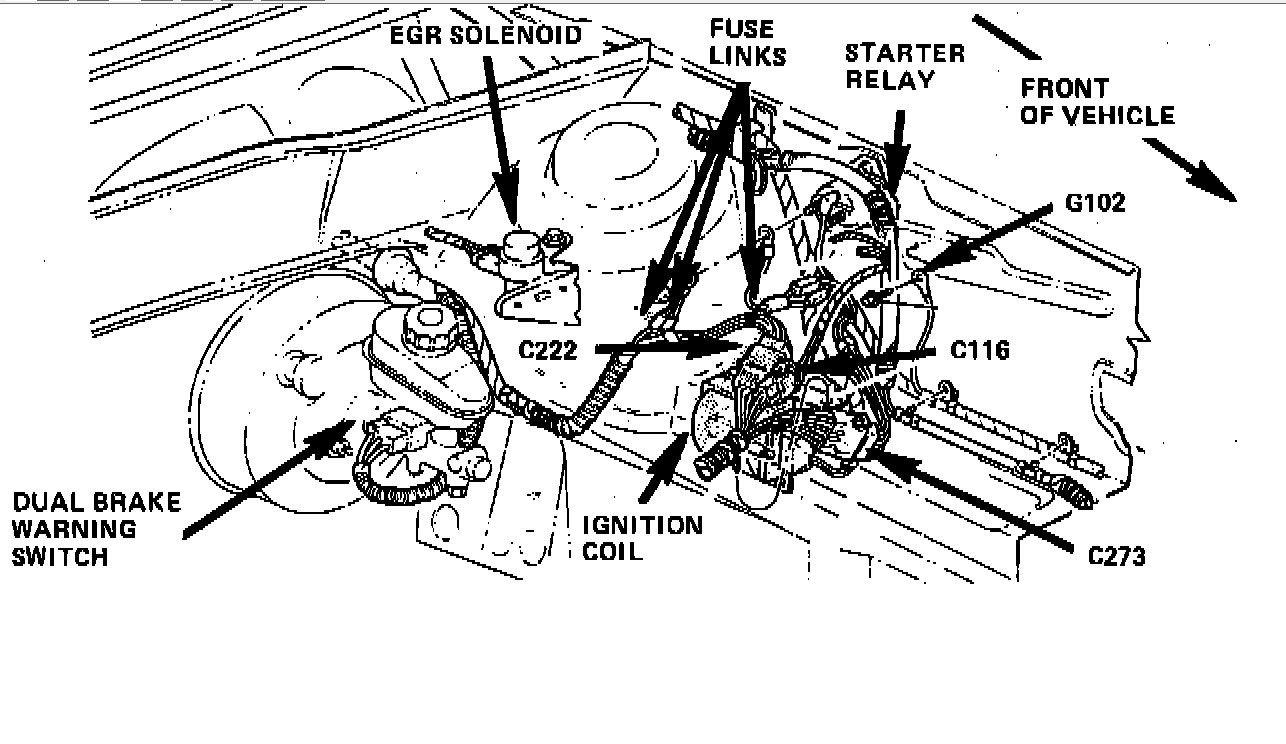

Unfortunately don't have any engine views.



OUTSTANDING!!

Thank you. Again.
