92 F350 7.3 engine compartment wiring diagram
Thread Starter
|
Junior Member
Joined: Oct 2016
Posts: 22
From: Nashville
92 F350 7.3 engine compartment wiring diagram
I have a 1992 F350 with the 7.3l diesel. I smelled a electrical burn then the engine died. Could not find a burnt wire and noticed the fuel pump was not pulsing, so I ran a jumper to the positive line on the fuel pump and it started right up. Drove it home and the key would not kill the engine until I disconnected the jumper. Does anyone have a wiring diagram so I can find the short? TIA!
Senior Member
Joined: Feb 2024
Posts: 1,273
From: California

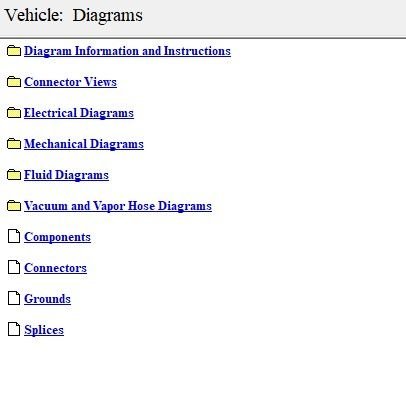

Diagrams-ALL index page show above.
Remove the 2 bolts and take off the cover, then you can see the fuel shutoff solenoid, remove and bench test it.

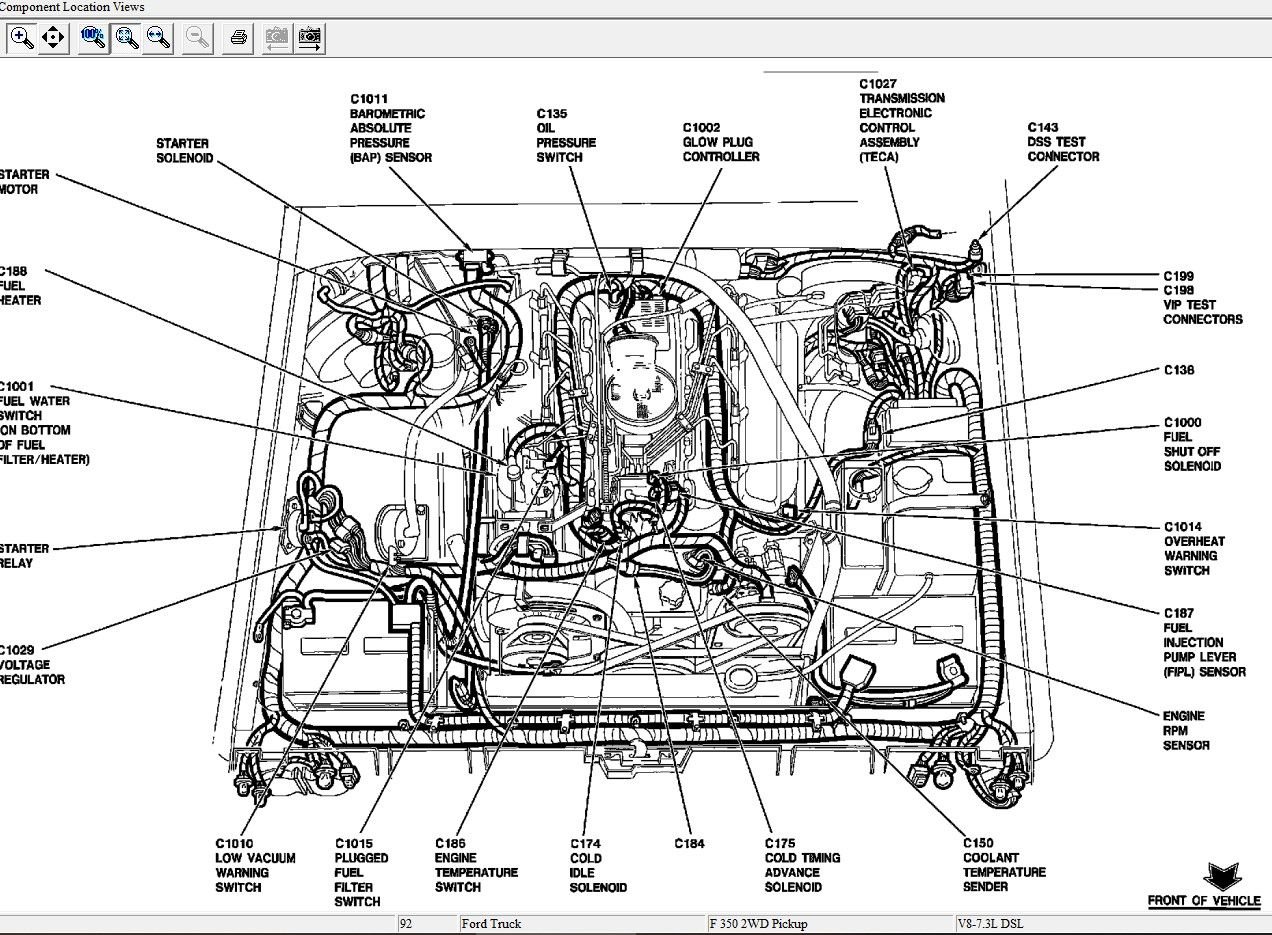

Locate C1000 above.
Last edited by heiko; Sep 4, 2025 at 11:00 PM.
